Spec : 75 Gen4
Spec : 86 Gen4
Manual

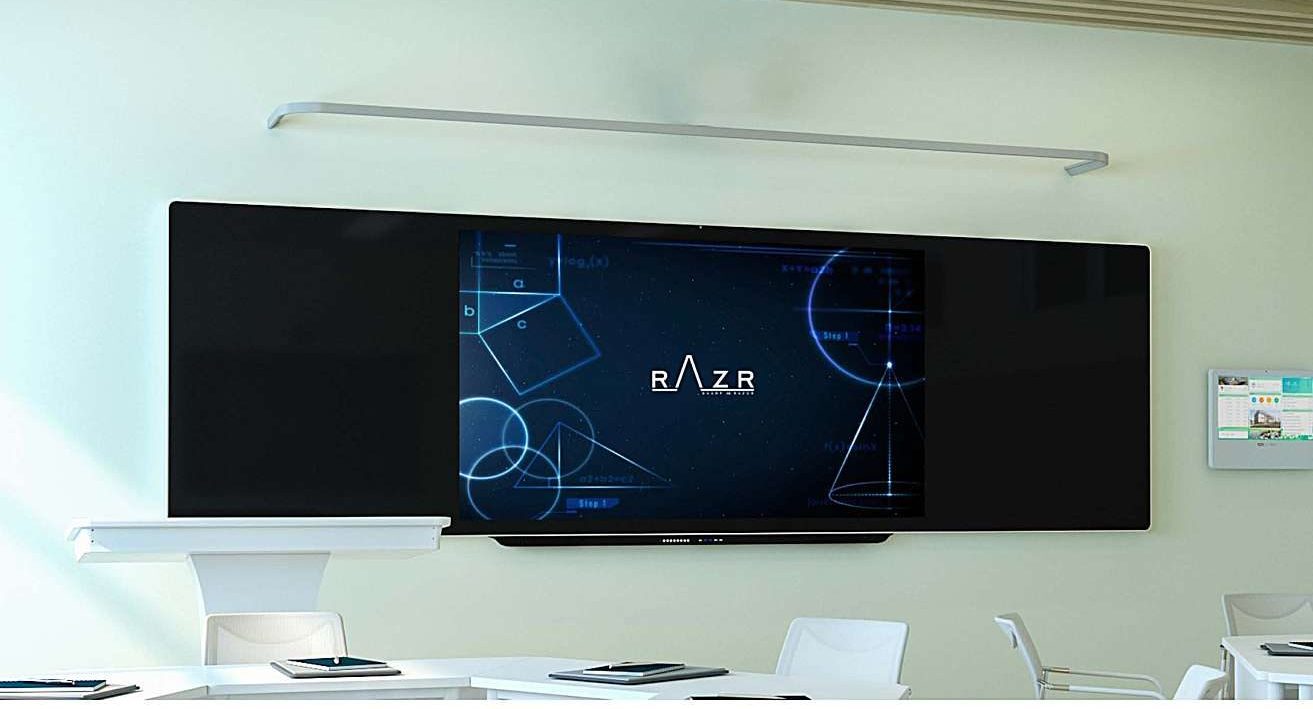

- i-Blackboard เป็นจอ LED TOUCHSCREEN แบบ Capacitive
- สามารถทัชสรีนได้20จุด
- จอมีความละเอียดระดับ 4K และใช้เทคโนโลยี Optical bonding ช่วยให้ภาพสว่างและคมชัด
- สามารถใช้ปากกาเคมีไร้กลิ่น,ชอคไร้ฝุ่นเขียนได้บนตัวจอรวมถึงกระดานด้านข้าง
- สามารถส่งภาพไร้สาย ได้หลายรูปแบบเช่น ส่งรูปภาพ ส่งไฟล์วิดีโอ ส่งไฟล์เอกสารต่าง หรือการควบคุมกระดานแบบไร้สาย
| Model | i-blackboard 75 Gen4 |
|---|---|
| Size | 75 |
| Display Backlight | D-LED |
| Resolution | 3840*2160 |
| Panal | IPS |
| Brightness | 450cd/㎡ |
| Display ratio | 16:9 |
| Color temperature | 10000K |
| Display Color | 10 bit ,1.07billoncolour |
| Constrast ratio | 4,000:1 |
| Response Time (Typical) | 8ms |
| Viewing Angle | 178° |
| Life time | ≧50000h |
| Display Orientation | landscaepe |
| Optical Bonding | yes |
| Touch technology | Capacitive touch |
| Touch Surface Material-Hardness | 4mm photoelectric glass |
| Touch Surface Technology | anti-glare glass , anti-smash, anti-scratch, anti-reflection, water proof |
| Touch points | 10 point Touch Andorid , 20 point touch Windows |
| Touch Screen Writing Tools | Fingers, capacitive pen |
| Cursor Speed | NO |
| Touch Response time | 8ms |
| Positioning Accuracy | 2 mm |
| USB-TOUCH | USB TOUCHx1 |
| Speaker Max.Power Output | 15W x2 |
| Installation Method (optional) | wall-mounted / floor stand |
| VESA Mount installation position | NO |
| Android Version | 8 |
| Android CPU | Cortex A73+A53 Quad core 1.5GHz |
| Android GPU | Mali-G51 |
| Android RAM | 4Gb |
| Android ROM | 32Gb |
| Camera | NO |
| Mic | Wireless microphone |
| Front input | HDMI 2.0 input x 1, Type-C x 1(support 10W charging), USB 2.0 x 1(for both PC and Android), USB 3.0 x 1(for both PC and Android) |
| Rear input | VGA input x 1, HDMI 2.0 input x 2, RJ45 x 1, RS232 x 1, USB Touch x 1(Type-B), USB 2.0 x 1(for Android), USB 3.0 x 1(for both PC and Android), PC audio in x 1 |
| Output | HDMI output x 1, Earphone/Line out x 1, SPDIF Out x 1 |
| Other Port | |
| USB port | |
| Ethernet port | |
| Product size/mm | 4000x1238x93 |
| Net Weight | 72KG（middle part）30KG（two sides） |
| Power | 100~240V/5A/60HZ/50HZ, 550W(MAX) |
| Model | i-blackboard 86 Gen4 |
|---|---|
| Size | 86 |
| Display Backlight | D-LED |
| Resolution | 3840*2160 |
| Panal | IPS |
| Brightness | 500cd/㎡ |
| Display ratio | 16:9 |
| Color temperature | 10000K |
| Display Color | 10 bit ,1.07billoncolour |
| Constrast ratio | 4,000:1 |
| Response Time (Typical) | 8ms |
| Viewing Angle | 178° |
| Life time | ≧50000h |
| Display Orientation | landscaepe |
| Optical Bonding | yes |
| Touch technology | Capacitive touch |
| Touch Surface Material-Hardness | 4mm photoelectric glass |
| Touch Surface Technology | anti-glare glass , anti-smash, anti-scratch, anti-reflection, water proof |
| Touch points | 10 point Touch Andorid , 20 point touch Windows |
| Touch Screen Writing Tools | Fingers, capacitive pen |
| Cursor Speed | NO |
| Touch Response time | 8ms |
| Positioning Accuracy | 2 mm |
| USB-TOUCH | USB TOUCHx1 |
| Speaker Max.Power Output | 15W x2 |
| Installation Method (optional) | wall-mounted / floor stand |
| VESA Mount installation position | NO |
| Android Version | 8 |
| Android CPU | Cortex A73+A53 Quad core 1.5GHz |
| Android GPU | Mali-G51 |
| Android RAM | 4Gb |
| Android ROM | 32Gb |
| Camera | NO |
| Mic | Wireless microphone |
| Front input | HDMI 2.0 input x 1, Type-C x 1(support 10W charging), USB 2.0 x 1(for both PC and Android), USB 3.0 x 1(for both PC and Android) |
| Rear input | VGA input x 1, HDMI 2.0 input x 2, RJ45 x 1, RS232 x 1, USB Touch x 1(Type-B), USB 2.0 x 1(for Android), USB 3.0 x 1(for both PC and Android), PC audio in x 1 |
| Output | HDMI output x 1, Earphone/Line out x 1, SPDIF Out x 1 |
| Other Port | |
| USB port | |
| Ethernet port | |
| Product size/mm | 4000x1238x93 |
| Net Weight | 72KG（middle part）30KG（two sides） |
| Power | 100~240V/5A/60HZ/50HZ, 550W(MAX) |
