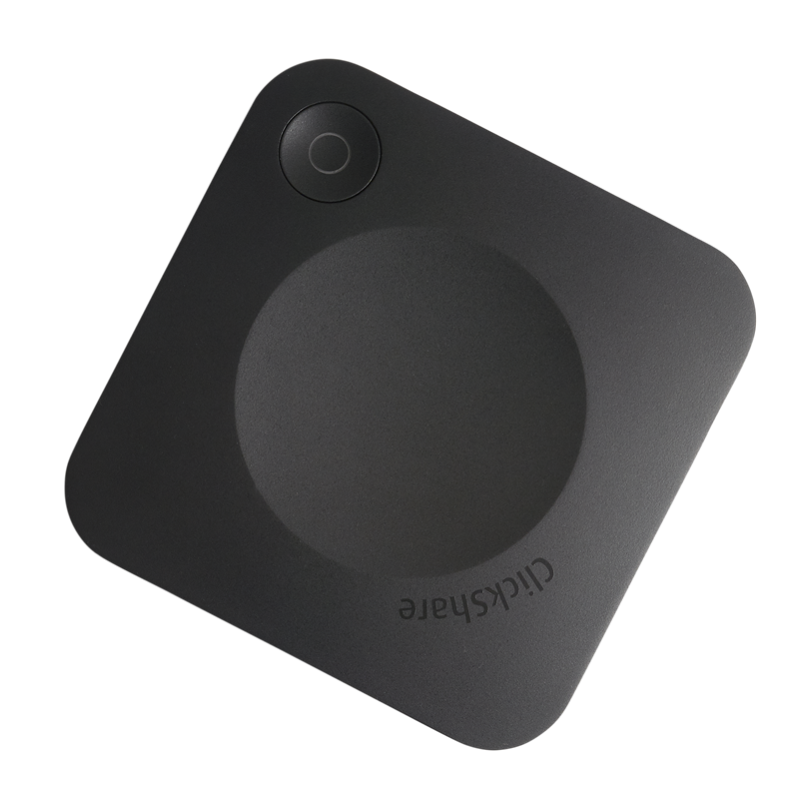

BARCO-ClickShare C-5

ClickShare Base Unit dimensions
Dimensions (HxWxD) 34 mm x 135 mm x 135 mm
Power supply Standard 110/220 V AC plug
Power consumption Operational: 5-10W, 24W Max
Weight 900 gr
General specifications
Operating system Windows 8/8.1/10/11 macOS 10.13 and higher.
Android v9 and higher (ClickShare App)*
iOS 12 and higher (ClickShare App)*
Video outputs 4K UHD (3840*2160) @ 30Hz. HDMI 1.4b
Audio output HDMI
USB 1 X USB-A, 1 X USB-C
ClickShare Buttons 0
ClickShare App Desktop & Mobile
Native protocols Airplay, Google Cast, Miracast
Maximum number of simultaneous connections
(with Buttons and/or App)
32
Noise Level Max. 25dBA @ 0-30°C
Max. 30dBA @ 30-40°C
Authentication protocol WPA2-PSK in stand alone mode
WPA2-PSK or IEEE 802.1X using the ClickShare Button in network integration mode
Wireless transmission protocol IEEE 802.11 a/g/n/ac and IEEE 802.15.1
Reach Adjustable with signal strength modulation; max. 30m (100 ft) between ClickShare Button and
ClickShare Base Unit
Frequency band 2.4 GHZ and 5 GHz
Frequency band 2.4 GHZ and 5 GHz (DFS channels supported in select number of countries)
Connections 1x Ethernet LAN 1Gbit
1x USB Type-C 2.0 (front); 1x USB Type A 2.0 (front)
Temperature range Operating: 0°C to +40°C (+32°F to +104°F)
Max: 35°C (95°F) at 3000m
Storage: -20°C to +60°C (-4°F to +140°F)
Humidity Storage: 0 to 90% relative humidity, non-condensing
Operation: 0 to 85% relative humidity, non-condensing
Anti-theft system Kensington lock
Certifications FCC/CE
Room Dock (peripheral support) No
Local view Local view of the room display only
Network connection LAN & WiFi
Management and reporting Yes
