Specifications
Parameter | Description |
|---|---|

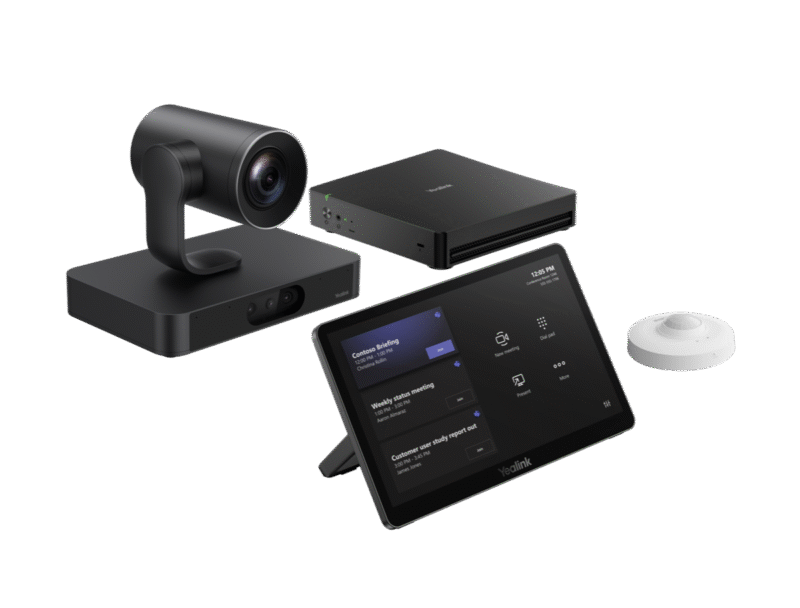

Package Content | MCore 4 MTouch plus RoomSensor SmartVision 80 |
Preload | Windows 11 IoT enterprise X64 Windows 11 IoT enterprise license Microsoft Teams rooms app Yealink RoomConnect |
MCore 4, Gen-4 Mini-PC | Processor: Intel Ultra5 125H Memory: 16GB(2*8GB) DDR5 Storage: 256GB SSD BIOS feature: 3x HDMI video output – CEC – EDID TPM2.0 Kernel DMA Interfaces: 1 x HDMI-Out 2.1 port 2 x HDMI-Out 2.0 port 1 x HDMI-In port 4 x USB3.0 Type-A port 1 x MTouch port (RJ-45) 1 x LAN port for AV network 1 x 10/100/1000 Gigabit Ethernet port 1 x power supply port 1 x 3.5mm headphone port 1 x reset port 1 x security slot WiFi: IEEE 802.11 a/b/g/n/ac/ax Bluetooth: BT 5.2 |
MTouch Plus | Physical features: 11.6-inch narrow bezel IPS display Angle between screen and desktop (30° ~ 70°) Adjustable angle of support frame (50° ~ 180°) Function features： 920 x 1080 video resolution Support wired and wireless (with WPP30) content sharing Support external PD power supply to power the sharing device Support HDMI/USB-C video input Support desktop placement, desktop fixed, and wall-mounted deployment |
RoomSensor | Detection angle: 120° Adjustable detection angle: ±20° Operating temperature: 0-40℃ Operating humidity: 10-95% |

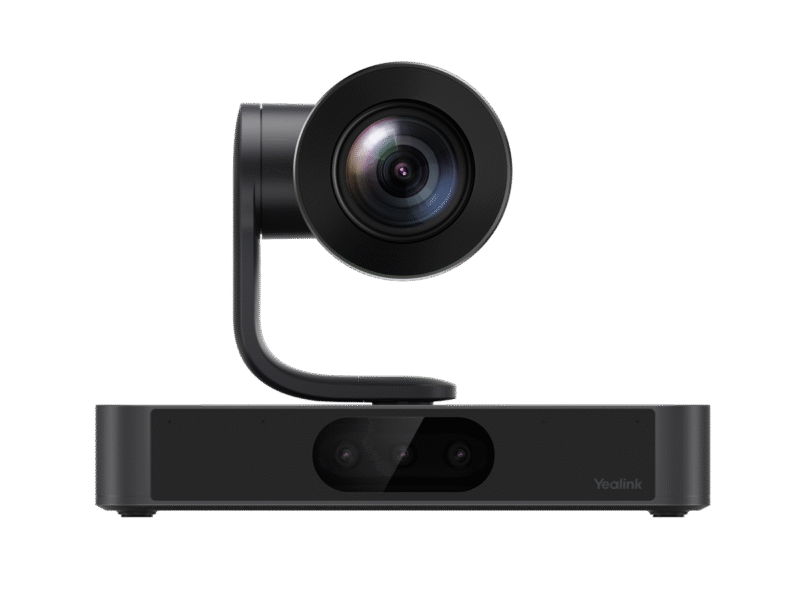

SmartVision 80 | Camera: PTZ Camera: 20×optical zoom 69° DFOV, 61.5° HFOV, 36° VFOV (PTZ camera) 110° DFOV, 98° HFOV, 82° VFOV (panoramic camera) 51° DFOV, 41.6° HFOV, 32° VFOV (telephoto camera) AI feature: IntelliFrame Participant identification ntelliFocus Speaker tracking Presenter tracking Video fence PIP Auto framing Interfaces: 1 × USB 3.0 type-B port 1 × USB 2.0 type-A port 2 × VCH port (RJ45) 1 × network port (RJ45) 1 × HDMI out port 1 × line in port 1 × line out port 1 × reset button 1 × DC power port |
