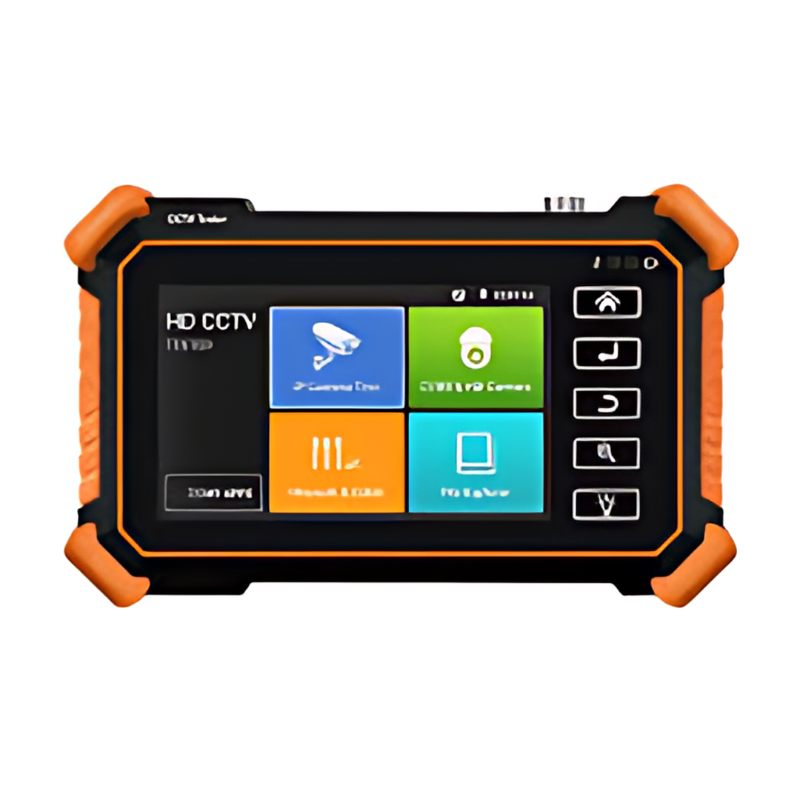

HD CCTV Tester 8K H.265 รุ่น IPC-1910 Plus
เครื่องทดสอบสัญญาณกล้องวงจรปิด 5 บบ รุ่น IPC-1910 Plus
รองรับได้ 5 ระบบ IP CVI TVI AHD Analog รองรับความละเอียดของกล้องได้ 8 ล้านพิกเซล
Features
- 4 inch IPS touch screen, 960 x 640 resolution
- 8K H.265 video display via mianstream
- IP and analog display image at the same time
- DC12V 3A, 48V PoE 25.5W power output
- Rapid ONVIF, create the test report and modify IP address
- Hight brightness LED light
- UTP cable test, detect the near-end, mid-end and far-end fault point of the RJ45 cable plug
- RJ45 TDR cable test, cable quality test
- SD Card slot, support up to 32G, to save video, picture and other files
- 8MP CVI/TVI/AHD camera test*
- Auto HD, auto recognize HD coax camera type and resolution*
- Analog camera test, PAL/NTSC auto adapt*
- Audio in support record and save the audio/LED lamp, caculators, music players and other application tools
- Customers self update software, you can install apps with android version
- 7.4V/2600mAh Lithium lon Battery, after 3 - 4 Hours charging, working time lasts 9 hours
ข้อมูลเพิ่มเติม Download
Specification
| Model | IPC-1910 Plus |
| Display | IPS touch screen cctv tester 960x640 resolution |
| Network port | 10/100/1000M auto adjust, RJ45 |
| WIFI | Built in WIFI, speeds 150M, display wireless camera image |
| H.265 Main Stream test | New hardware decoding, 4K H.265/H.264 camera image display by mainstream testing |
| IP Discovery | Auto scan the whole network segment camera IP |
| Rapid ONVIF | Search camera quickly,auto log inand display image from the camera, activate Hikvision camera |
| Lens Simulation | can simulate "2.8/3.6/4/6/8/12/16/25mm" lenses display area |
| Focus information test | camera focus isnfor, signal quality test, Image quality test. |
| Analog video test | 1 channel BNC Input, NTSC/PAL (Auto Adapt) |
| PoE power output | 48V PoE power output, Max power 25.5W |
| Working Temperature | -10C + 50C |
| Working Humidity | 30%-90% |
| Auto Off | 1 - 30 mins |
