Specifications
Parameter | Description |
|---|---|

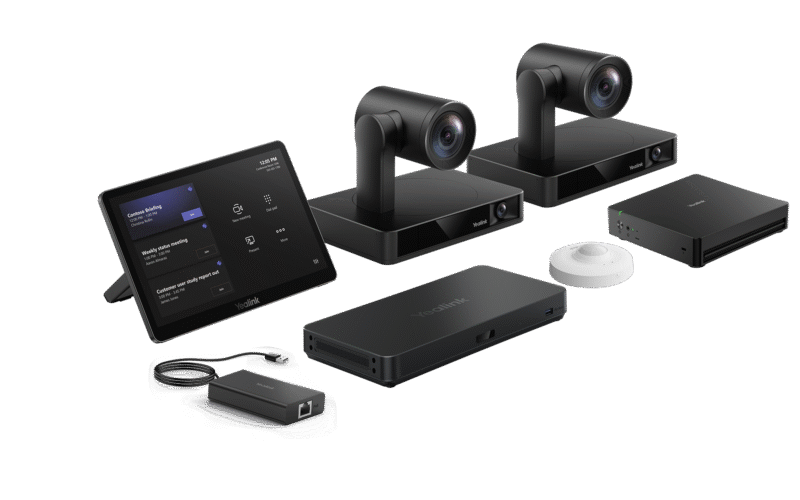

Package Content | MCore 4 MTouch plus RoomSensor UVC86 x 2 AVHub BYOD-Extender |
Preload | Windows 11 IoT enterprise X64 Windows 11 IoT enterprise license Microsoft Teams rooms app Yealink RoomConnect |
MCore 4, Gen-4 Mini-PC | Processor: Intel Ultra5 125H Memory: 16GB(2*8GB) DDR5 Storage: 256GB SSD BIOS feature: 3x HDMI video output – CEC – EDID TPM2.0 Kernel DMA Interfaces: 1 x HDMI-Out 2.1 port 2 x HDMI-Out 2.0 port 1 x HDMI-In port 4 x USB3.0 type-A port 1 x MTouch port (RJ-45) 1 x LAN port for AV network 1 x 10/100/1000 Gigabit Ethernet port 1 x power supply port 1 x 3.5mm headphone port 1 x reset port 1 x security slot WiFi: IEEE 802.11 a/b/g/n/ac/ax Bluetooth: BT5.2 |
MTouch Plus | Physical features: 11.6-inch narrow bezel IPS display Angle between screen and desktop (30° ~ 70°) Adjustable angle of support frame (50° ~ 180°) Function features： 1920 x 1080 video resolution Support wired and wireless (with WPP30) content sharing Support an external PD power supply to power the sharing device Support HDMI/USB-C video input Support desktop placement, desktop fixed, and wall-mounted deployment |
RoomSensor | Detection angle: 120° Adjustable detection angle: ±20° Operating temperature: 0-40℃ Operating humidity: 10-95% |
UVC86 USB PTZ Camera | Camera: 4K sensor 20.4 × HD zoom (12x optical, 1.7x digital) 90° DFOV, 81° HFOV, 50° VFOV (Telephoto lens) 120° DFOV, 110° HFOV, 78° VFOV (Panoramic lens) Up to 9 preset positions can be set Horizontal rotation: 200° Vertical rotation: 130° AI feature: Auto-framing Speaker tracking Presenter tracking, support area trigger, and gesture control Multi-focus Picture-in-picture Interfaces: 1 x HDMI output 1 x Yealink microphone port (RJ-45) 1 x USB 3.0 type-B port 1 x USB 2.0 type-A Port 1 x power port 1 x security lock 1 x reset hole |

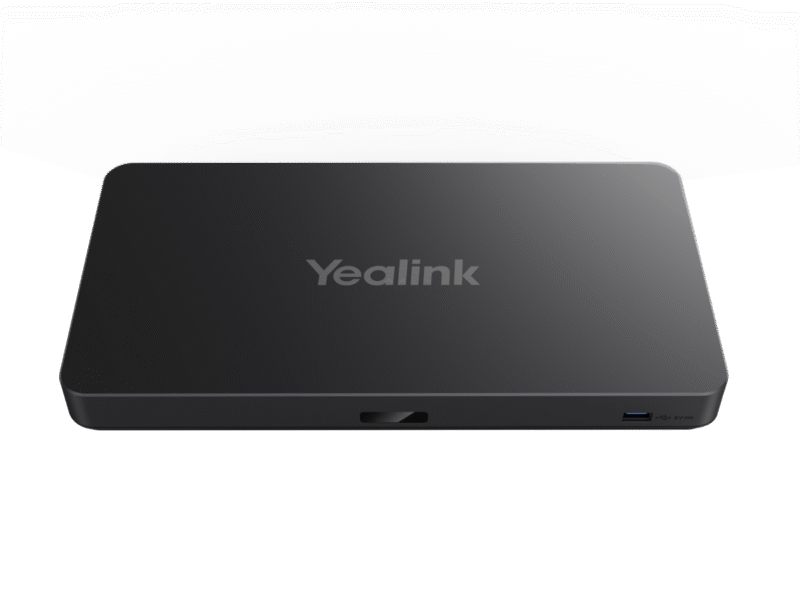

AVHub, audio and video processor | Interfaces: 2 x USB-A port 1 x USB-B port 1 x Codec port 7 x Yealink VCH port (RJ-45) 1 x RCA in/out interface 1 x 6.3mm line in interface 1 x 6.3mm line out interface 1 x power interface Function features： Dividable and merging meeting rooms are supported Support intelligent multi-speaker tracking |

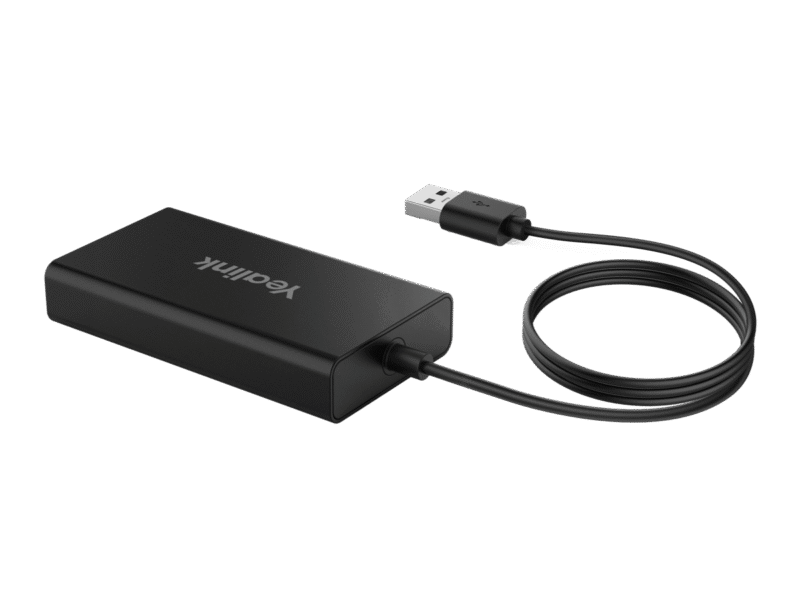

BYOD-Extender | Interfaces: 1.5m USB2.0 type-A cable 1 x VCH port (RJ45) Physical feature: Operating humidity: 10~95% Operating temperature: 0~40℃ Dimension: 89mm x 48mm x 17mm |
