Newland Barcode Scanner

Newland Barcode Scanner

เครื่องอ่านบาร์โค้ดหรือคิวอาร์โค้ดแบบมือถือระดับอุตสาหกรรม (Industrial Handheld Scanners)

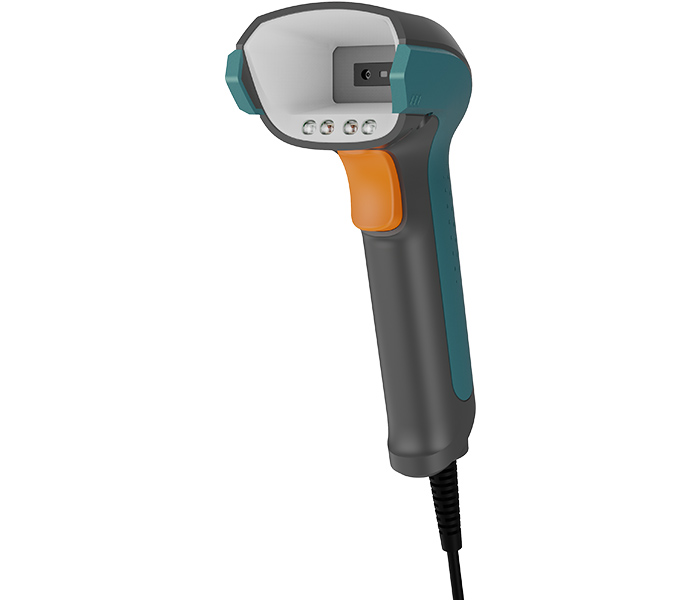

6930eeb33de27
6930eeb2c4500
6930eeb488029
6930eeb43e45c
6930eeb3125df

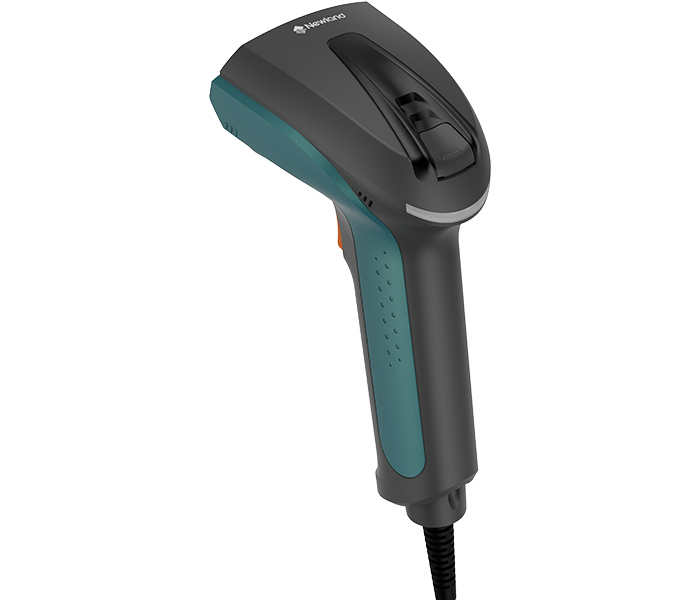

6930eeb1b92d2

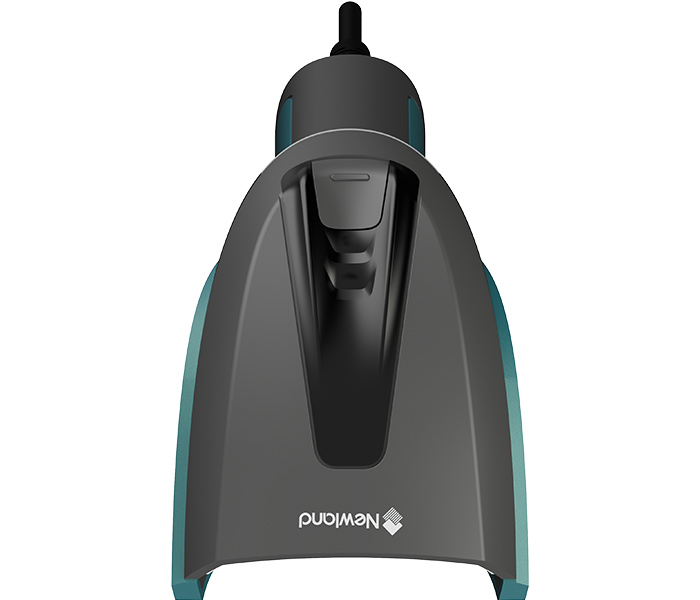

6930eeb1e538e

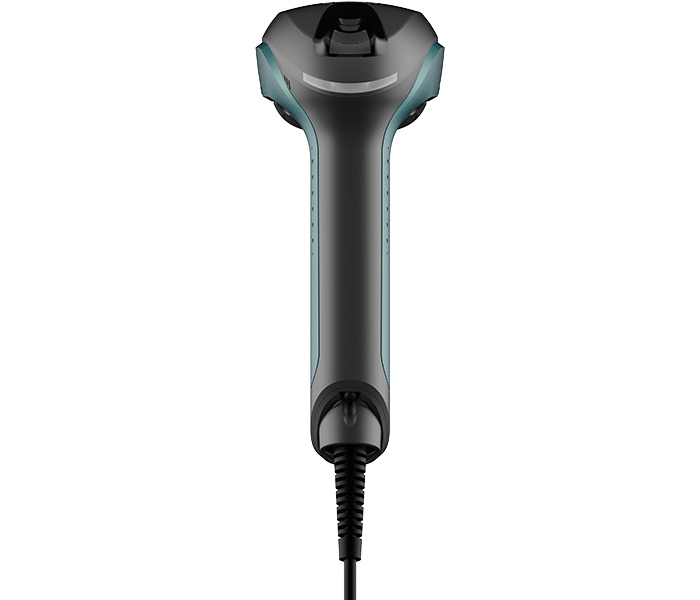

6930eeb184238

NLS-NVH220-HD_Datasheet

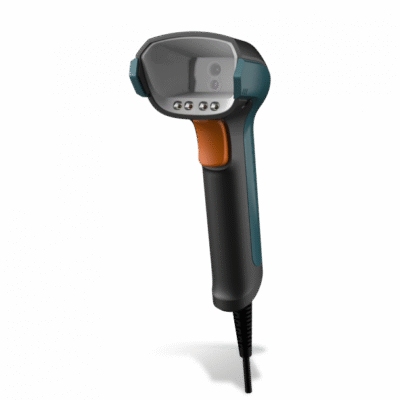

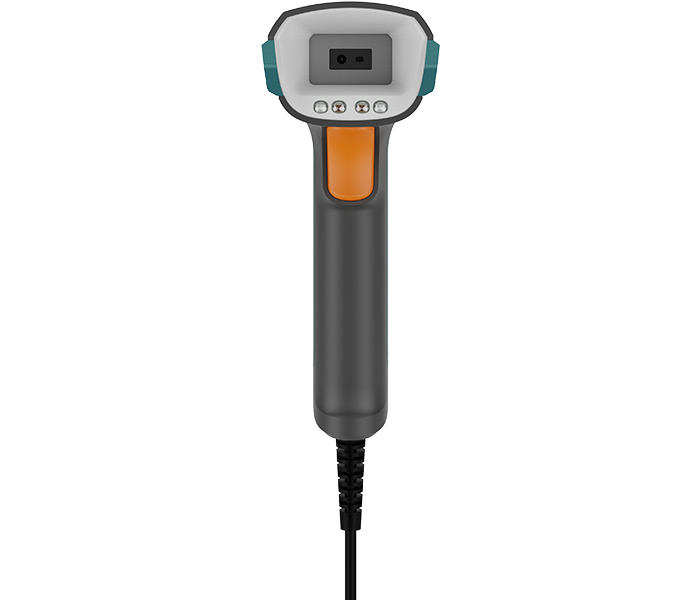

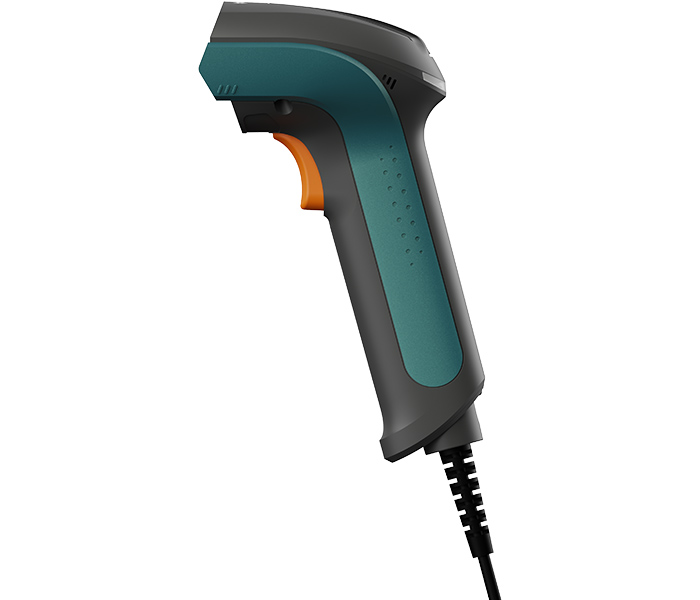

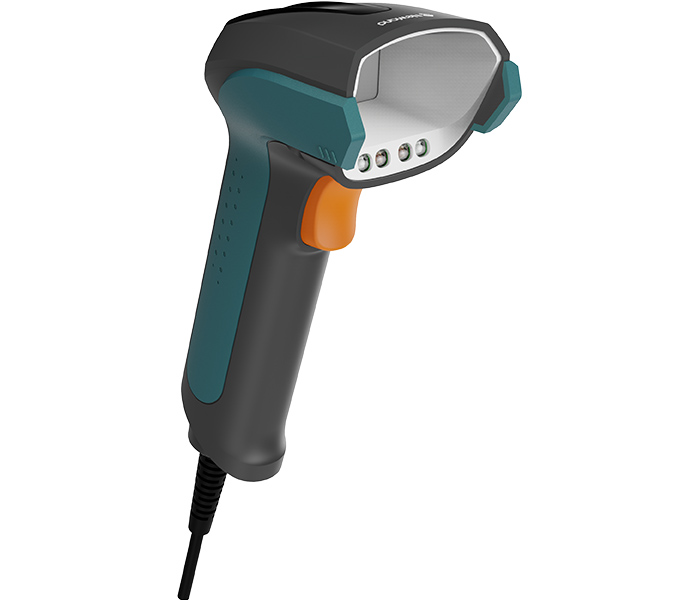

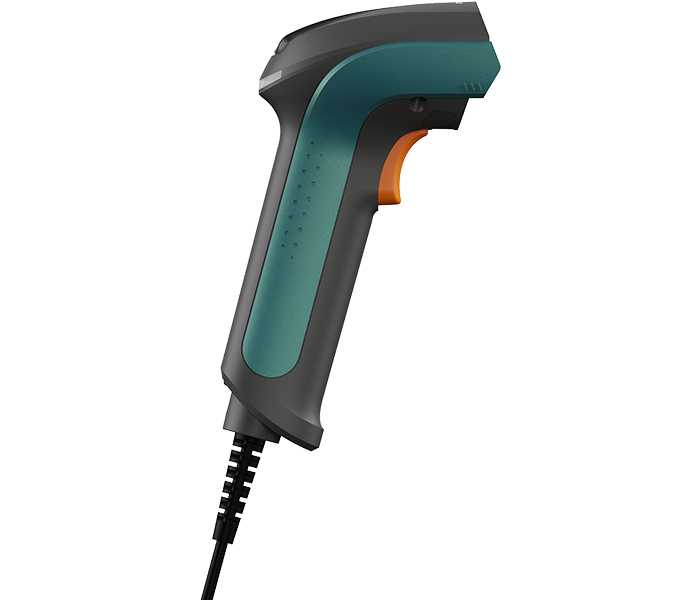

NVH220

  • Decode Capability 1D, 2D
  • Connectivity Corded
  • Dimension 68(W)×86(D)×180(H) mm
  • Weight 160g (without cable)
  • Sealing IP64
  • Interface USB, RS-232, Ethernet
Image Sensor1280 × 800 CMOS
IlluminationDirect: red & blue LEDs;
Diffuse: white LED;
Aiming650nm, crosshair laser
Symbologies2D: QR Code, PDF417, Micro QR, Data Matrix, AZTEC.

1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code128, Code93, ITF-6, ITF-14,
Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, Code 39, AIM 128, GS1
Composite, GS1-128 (UCC/EAN), ISBT 128
Code 11, MSI-Plessey, Plessey, etc.
Resolution≥3mil(2D)
≥1.85mil(1D)
Typical Depth of FieldEAN-13(13mil) : 10mm-280mm
Code 39(5mil) : 30mm-180mm
Code 39(20mil) : 50mm-440mm
Data Matrix(10mil) : 15mm-140mm
QR Code(20mil) : 10mm-250mm
Scan AngleRoll: 360°, Pitch: ±50°, Skew: ±50°
Min. Symbol Contrast15%
Motion Tolerance2m/s
Field of ViewHorizontal 42°，Vertical 28°
Dimensions68 (W) × 86 (D) × 180(H) mm
Weight160g(without cable)
NotificationBeep, LED indicator, Vibrator
CurrentOperating (typical) 300mA
Operating (max.) 450mA
InterfacesUSB, RS232
Operating Voltage5VDC±5%
Rated Power Consumption1500mW（typical）
Operating Temperature-20°C to 50°C(-4°F to 122°F)
Storage Temperature-40°C to 70°C(-40°F to 158°F)
Humidity5% to 95% (non-condensing)
ESD±16 KV (air discharge); ±8 KV (direct discharge)
Drop2.4m
SealingIP64

CE, FCC, RoHS 2.0, IEC 60825-1, IEC 62471, BIS, KC,ISO 16750-5:2023

CableUSB: USB Cable
RS-232: RS232 cable and AC adapter, Input 100~240V, output DC 5V/1.5A
Ethernet: Ethernet cable and AC adapter, Input 100~240V, output DC 5V/1.5A

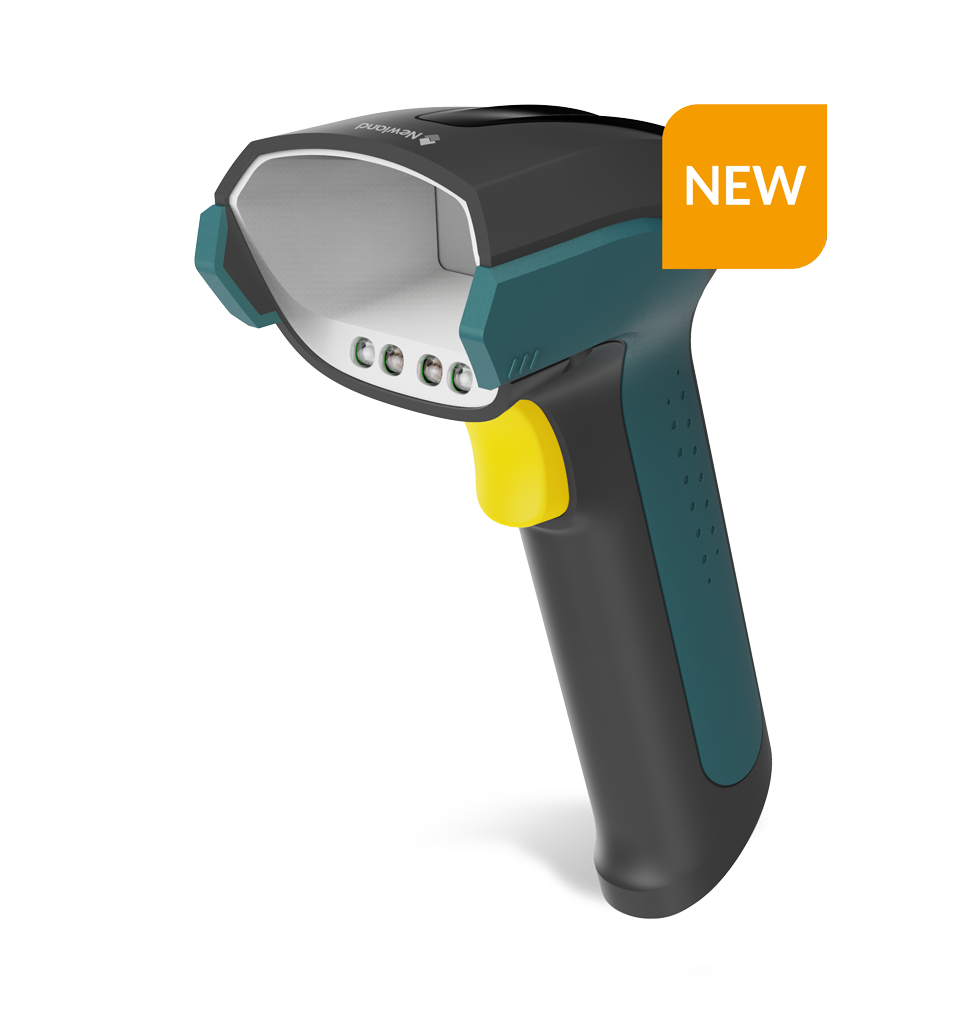

0000791_nvh220-ai-bt_1-tag
0000795_nvh220-ai-bt_4

nvh220-lophius-ai-bluetooth_Datasheet

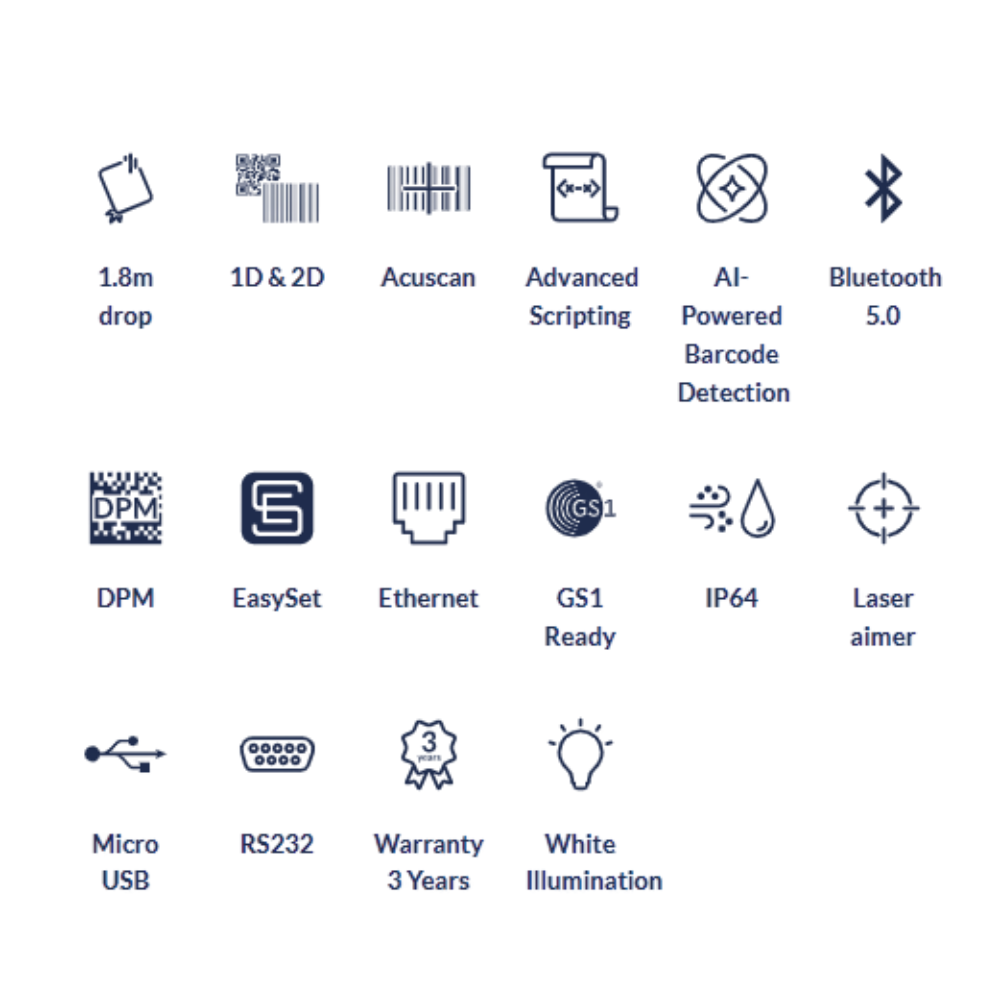

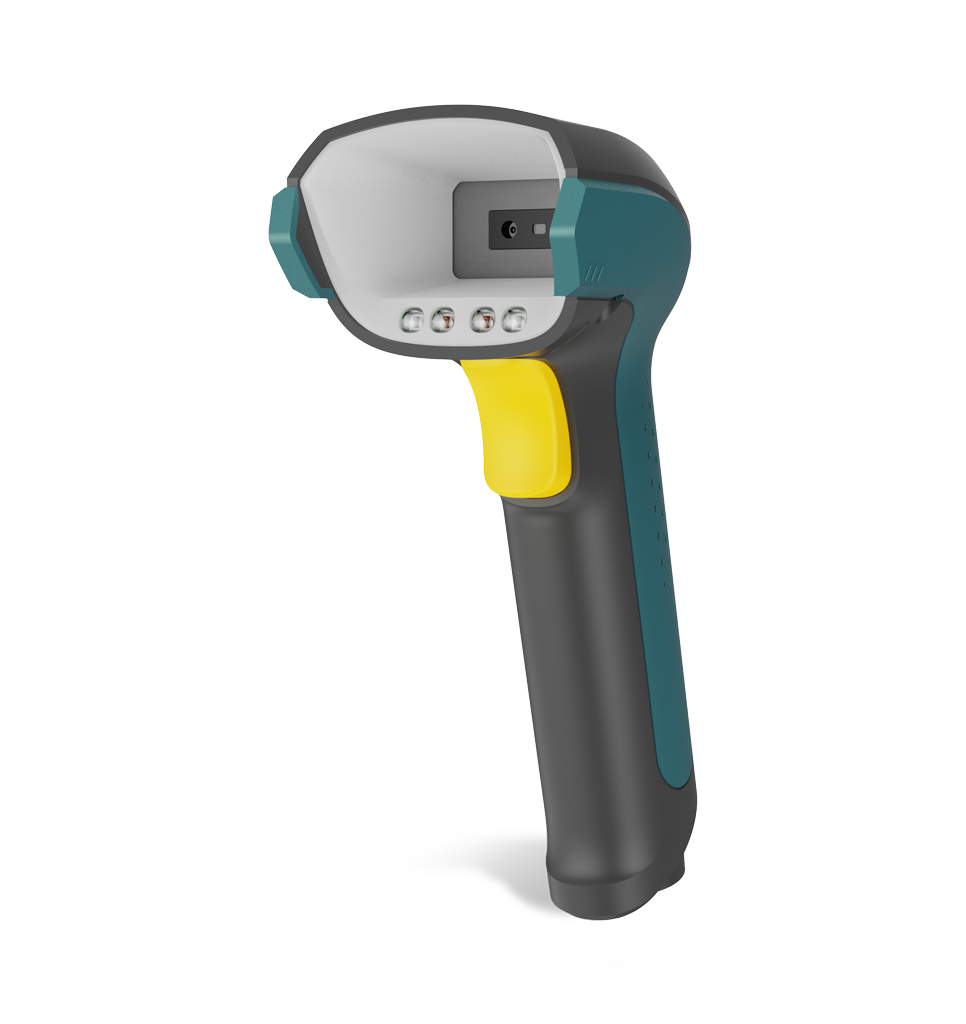

NVH220 Lophius AI Bluetooth

Newland Barcode Scanner 62

1DEAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code128, Code93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, Code 39, AIM 128, GS1 Composite, GS1-128(UCC/EAN), ISBT 128, Code 11, MSI-Plessey, Plessey, etc.
2DQR Code, PDF417, Micro QR, Data Matrix, AZTEC.
AimingCross laser (650nm)
Depth of Field Code 39 (20mil)65 mm – 350 mm
Depth of Field Code 39 (5mil)0 mm – 160 mm
Depth of Field EAN 13 (13mil)15 mm – 220 mm
Depth of Field QR (10mil)0 mm – 160 mm
Depth of Field QR (20mil)0 mm – 225 mm
Field of View Horizontal33˚
Field of View Vertical22˚
GS1 ReadyYes
IlluminationDirect: red & blue LEDs, Diffuse: white LED
Image Sensor1280 x 800 CMOS
Minimal Print Contrast15%
OCROptional
Resolution≥1.25mil (1D), ≥2.82mil (2D)
Scan Angle Pitch±50˚
Scan Angle Roll360˚
Scan Angle Skew±50˚
Battery Type2,900 mAh
Current @ 3.8VDC Operating370 mA (red LED by default)
Current @ 3.8VDC Standby90 mA
DimensionsScanner: 68(W) × 86(D) × 180(H) mm, Cradle: 103(W) x 127(D) x 123(H) mm
Expected Battery Life≥17 hours of continuous operation, up to 60,000 scans per charge
Expected Charge Time3 hours
InterfacesRS-232, Ethernet, TCP/IP, ModbusTCP, Profinet, MELSEC/SLMP
NotificationsBeep, LED, Vibration
Power Consumption1400 mW (typical)
WeightScanner: 218g (with battery); Cradle:217g
Radio TechnologyBluetooth 5.0
Wireless Distance ( max.)150m (line of sight)
Charge Temperature0°C to 45°C (32°F to 113°F)
Drop1.8 m
Electro Static Discharge (ESD)±16 kV (air discharge), ±8 kV (direct discharge)
Humidity5% to 95% (non-condensing)
IP RatingIP64
IP Rating with CradleIP42
Operating Temperature-20°C to 50°C (-4°F to 122°F)
Storage Temperature-40°C to 70°C (-40°F to 158°F)
Configuration ToolsEasySet
Certifications HardwareCE, CCC, FCC, RoHS 2.0, IEC 62471, IEC 60825, ISO16750



Accessories OptionalUSB cable, RS-232 cable, Multiplug adapter, Wall mount clip, Ethernet cable, Rubber boot
Accessories StandardStand/Docking station, USB cable, Power adapter

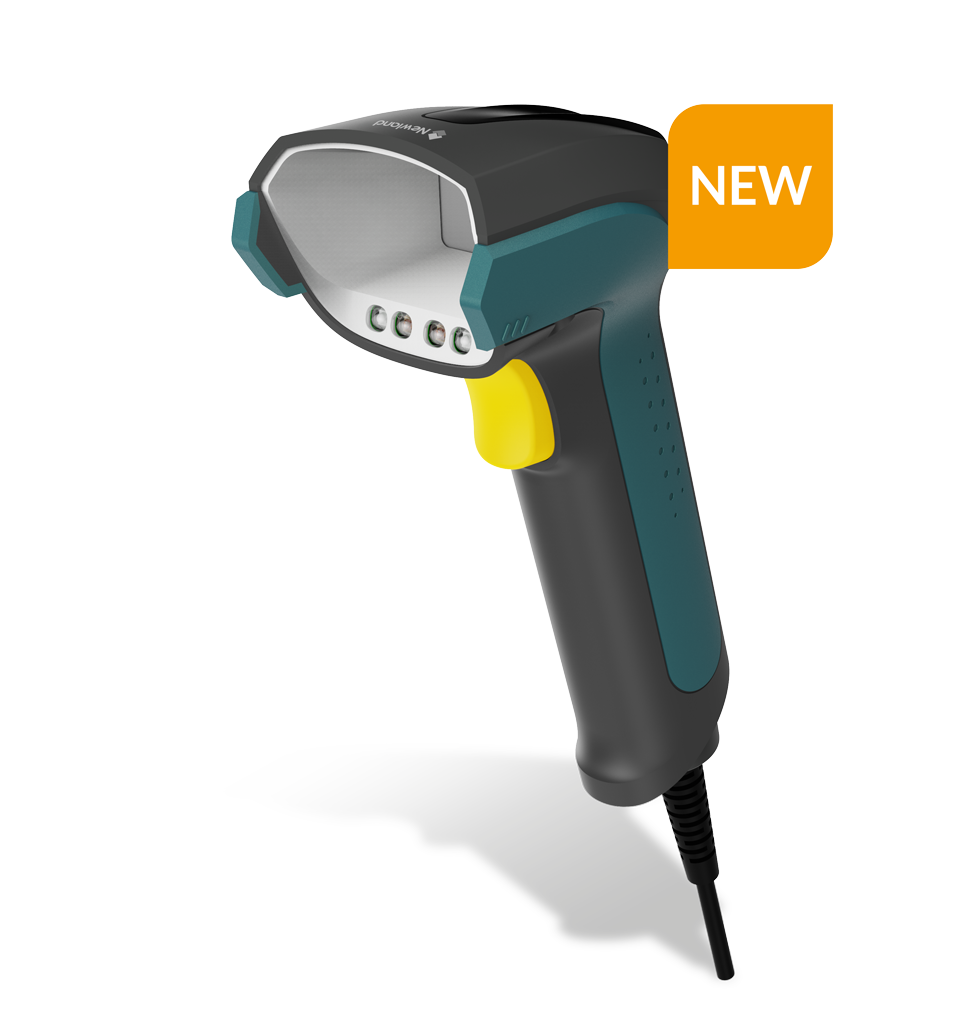

0000798_nvh220-ai-corded_1-tag
0000803_nvh220-ai-corded_5

nvh220-lophius-ai-corded_Datasheet

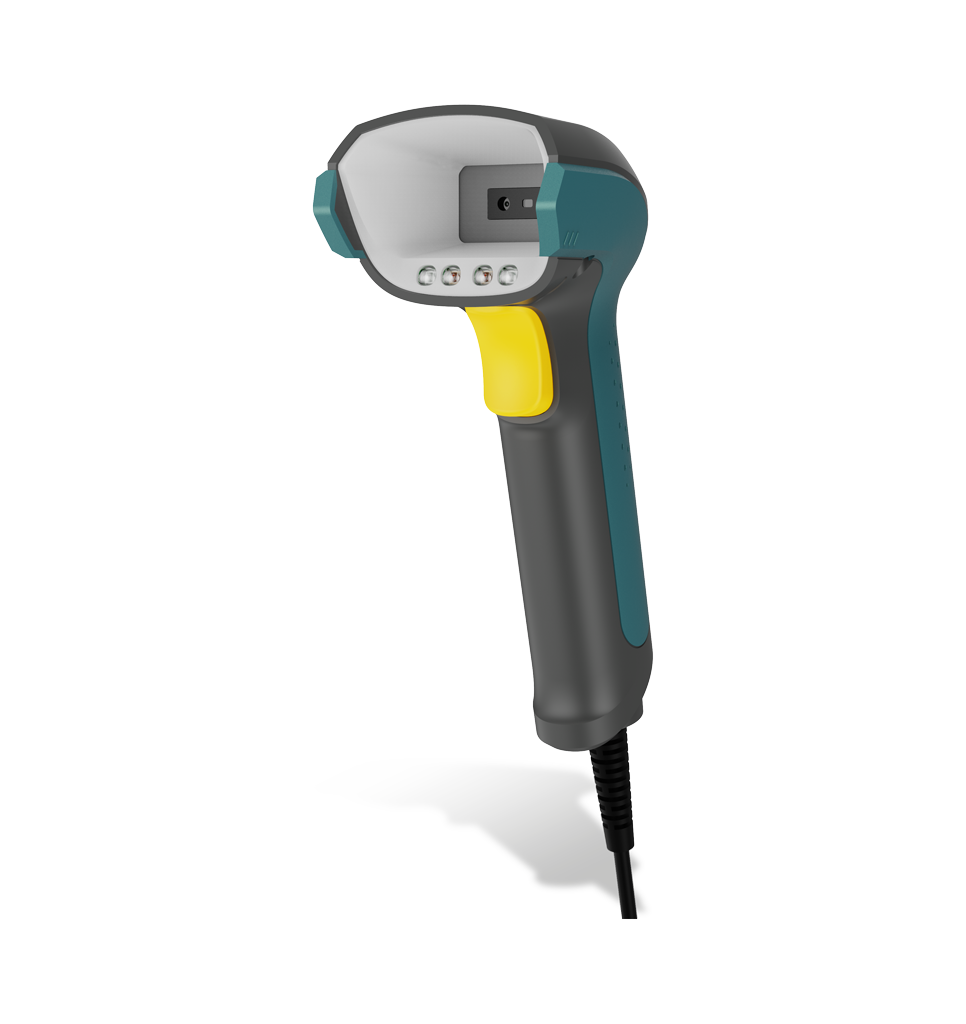

NVH220 Lophius AI Corded

Newland Barcode Scanner 66

1DEAN-13,EAN-8,UPC-A,UPC-E,ISSN,ISBN,Codabar,Code128,Code93,ITF-6,ITF-14,Interleaved 2 of 5,Industrial 2 of 5,Standard 2 of 5,Matrix 2 of 5,Code 39,AIM 128,GS1 Composite,GS1-128 (UCC/EAN),ISBT 128 39,AIM 128,GS1 Composite,GS1-128(UCC/EAN),ISBT 128 Code 11, MSI-Plessey, Plessey, etc.
2DQR Code, PDF417, Micro QR, Data Matrix, AZTEC.
AimingCross laser (650nm)
Depth of Field Code 39 (20mil)35 mm – 510 mm
Depth of Field Code 39 (5mil)0 mm – 160 mm
Depth of Field EAN 13 (13mil)15 mm – 220 mm
Depth of Field QR (10mil)0 mm – 160 mm
Depth of Field QR (20mil)0 mm – 225 mm
Field of View Horizontal33°
Field of View Vertical22°
GS1 ReadyYes
IlluminationDirect: red & blue LEDs, Diffuse: white LED
Image Sensor1280 x 800 CMOS
Minimal Print Contrast20%
Motion Tolerance2 m/s
OCROptional
Resolution≥2mil
Scan Angle Pitch±50°
Scan Angle Roll360°
Scan Angle Skew±50°
Current @ 5VDC Operating300 mA (typical), 450 mA(max)
Dimensions68(W) × 86(D) × 180(H) mm
Input Voltage5 VDC ±5%
InterfacesUSB, RS-232, Ethernet
NotificationsBeep, LED, Vibration
Power Consumption1,500 mW (typical)
Weight160g (without cable)
Drop1.8m
Electro Static Discharge (ESD)±16 kV (air discharge), ±8 kV (direct discharge)
Humidity5% to 95% (non-condensing)
IP RatingIP64
Operating Temperature-20°C to 50°C (-4°F to 122°F)
Storage Temperature-40°C to 70°C (-40°F to 158°F
Communication ProtocolRS-232, TCP-IP, USB
Configuration ToolsEasySet
Certifications HardwareCE, FCC, RoHS, IEC 62471
Accessories OptionalEthernet cable, RS-232 cable, USB cable
Accessories StandardUSB cable, Power adapter

เครื่องอ่านบาร์โค้ดแบบมือถืออเนกประสงค์ (General Purpose Handheld Scanners)

0000198_hr11_aringa_1

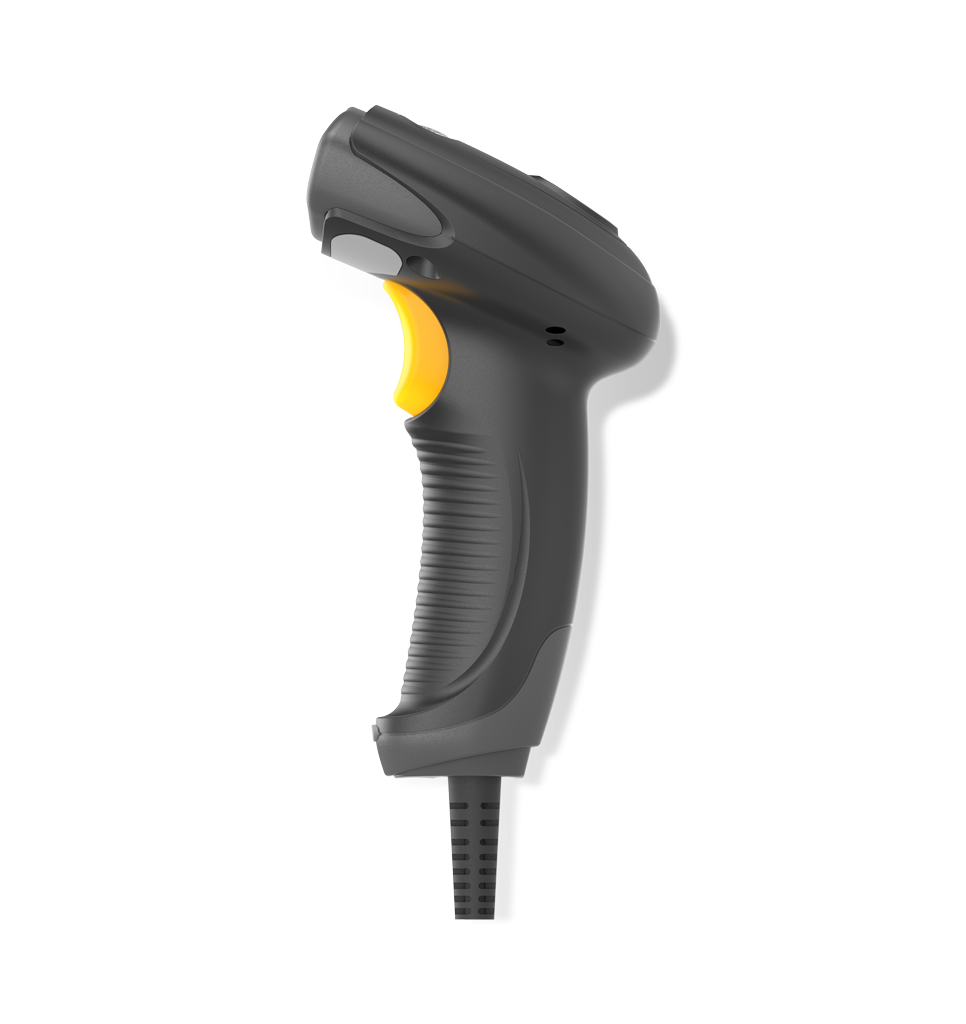

0000259_hr11_aringa_3

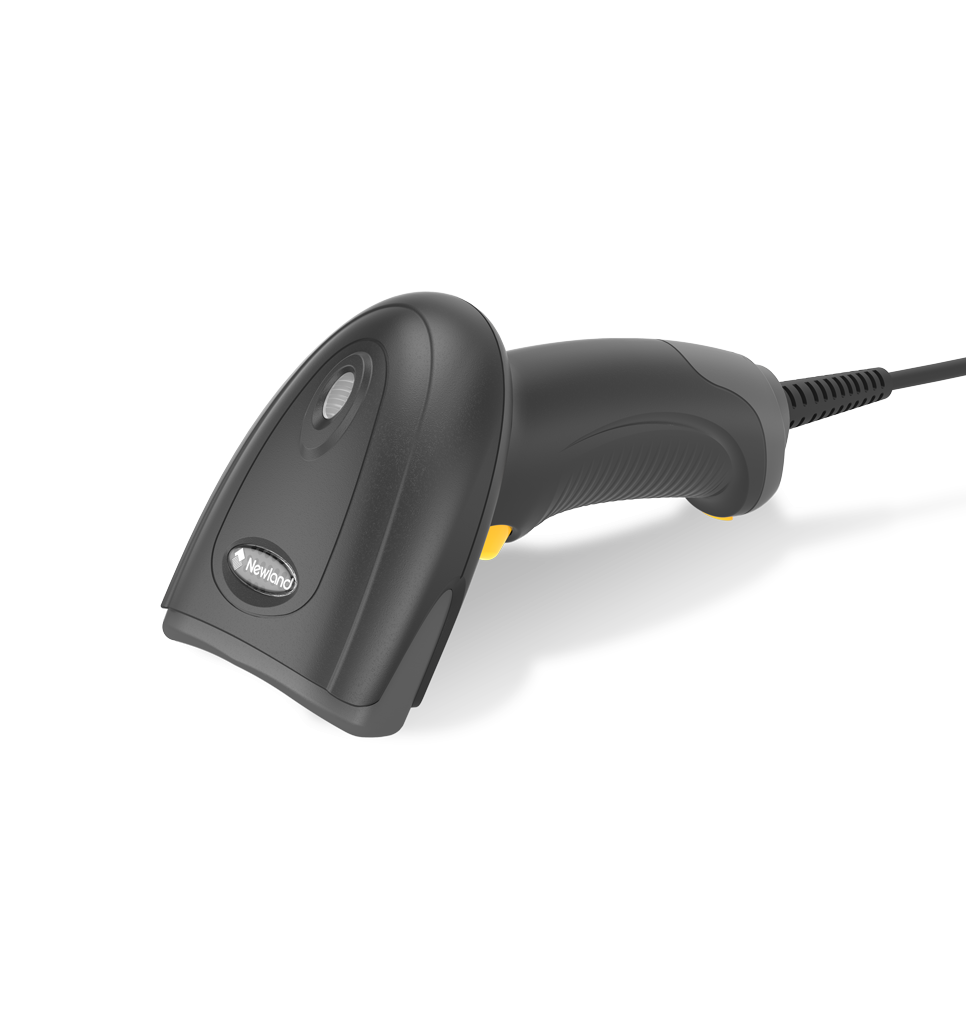

0000281_hr11_aringa_2

hr11-aringa_Datasheet

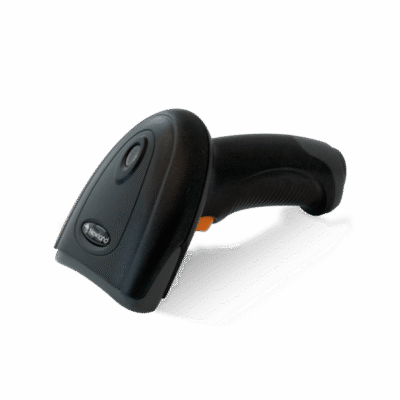

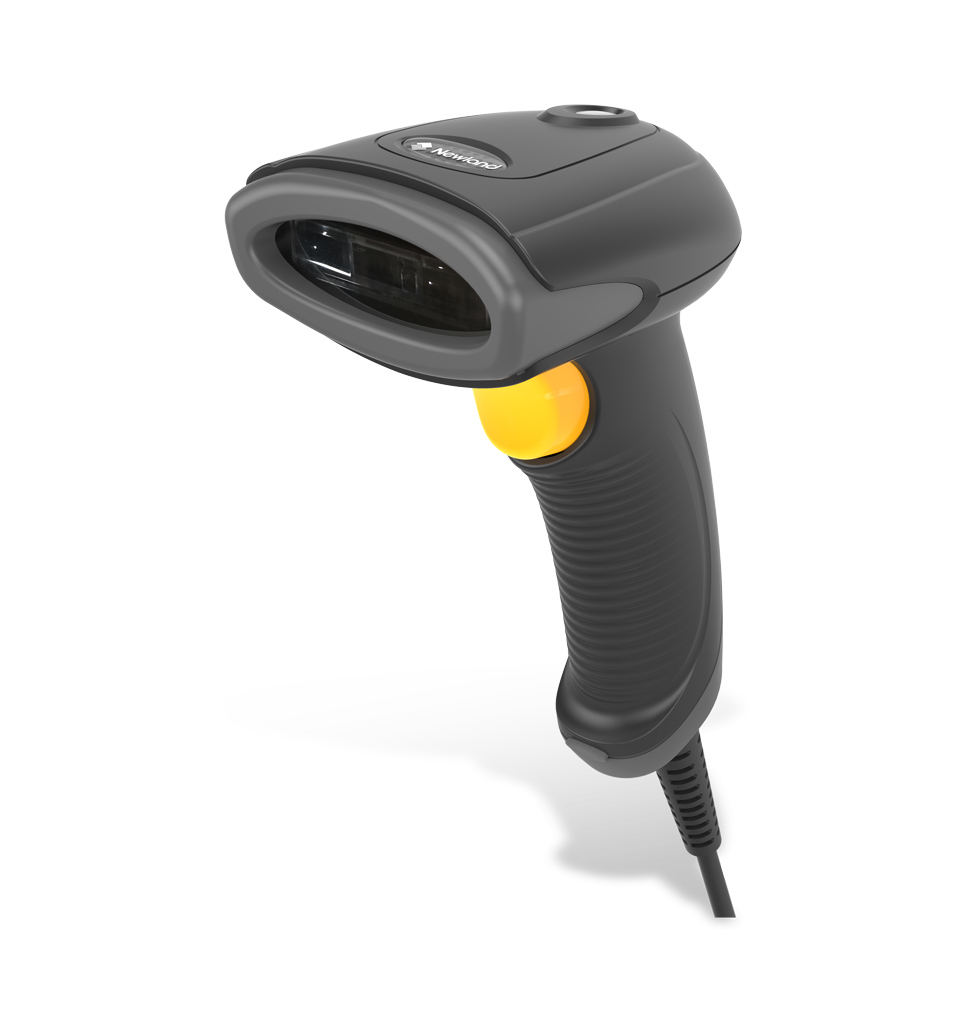

HR11 Aringa

Newland Barcode Scanner 71

1DAll major 1D symbologies, including AIM 128, Code 11, Code32, Code 39, Code 93, Code 128, Codabar,COOP 25, Deutsche 12, Deutsche 14, EAN-8, EAN-13, Febraban,GS1-128, GS1 Databar (RSS), ISBN, ISSN, ITF-6, ITF-14, MSI-Plessey,Plessey, UPC-A, UPC-E, Industrial 2 of 5, Interleaved 2 of 5,Matrix 2 of 5, Standard 2 of 5.
Depth of Field Code 39 (5mil)80 mm – 180 mm
Depth of Field EAN 13 (13mil)40 mm – 480 mm
Field of View Horizontal53°±2°
IlluminationRed LED (620nm-630nm)
Image Sensor2500 linear imager
Minimal Print Contrast20%
Resolution≥3mil
Scan Angle Pitch±60°
Scan Angle Roll360°
Scan Angle Skew±70°
Current @ 5VDC Operating70.4 mA (typical), 96.8 mA (max)
Current @ 5VDC Standby57.6 mA
Dimensions101(W) × 68(D) × 145(H) mm
Input Voltage5 VDC ±5%
InterfacesRS-232, USB
NotificationsBeep, LED
Power Consumption352 mW (typical)
Weight120 g
Drop1.5 m
Electro Static Discharge (ESD)±8 kV (direct discharge), ±16 kV (air discharge)
Humidity5% to 95% (non-condensing)
IP RatingIP42
Operating Temperature-20°C to 60°C (-4°F to 140°F)
Storage Temperature-40°C to 70°C (-40°F to 158°F)
Configuration ToolsEasySet
Certifications HardwareFCC Part15 Class B, CE EMC Class B, RoHS
Accessories OptionalRS-232 cable, USB cable, USB-C cable, Multiplug adapter, Foldable smart stand
Accessories StandardUSB cable, RS-232 cable

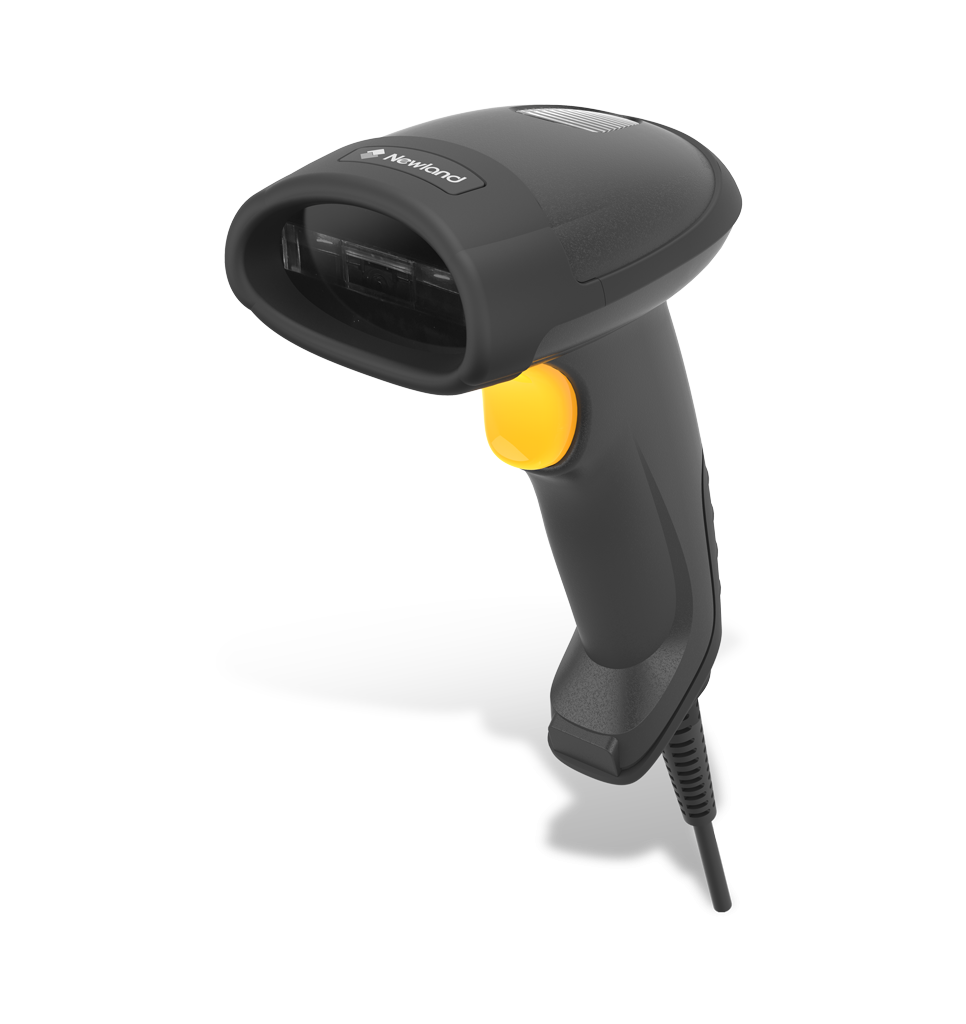

0000252_hr15_wahoo_corded_1

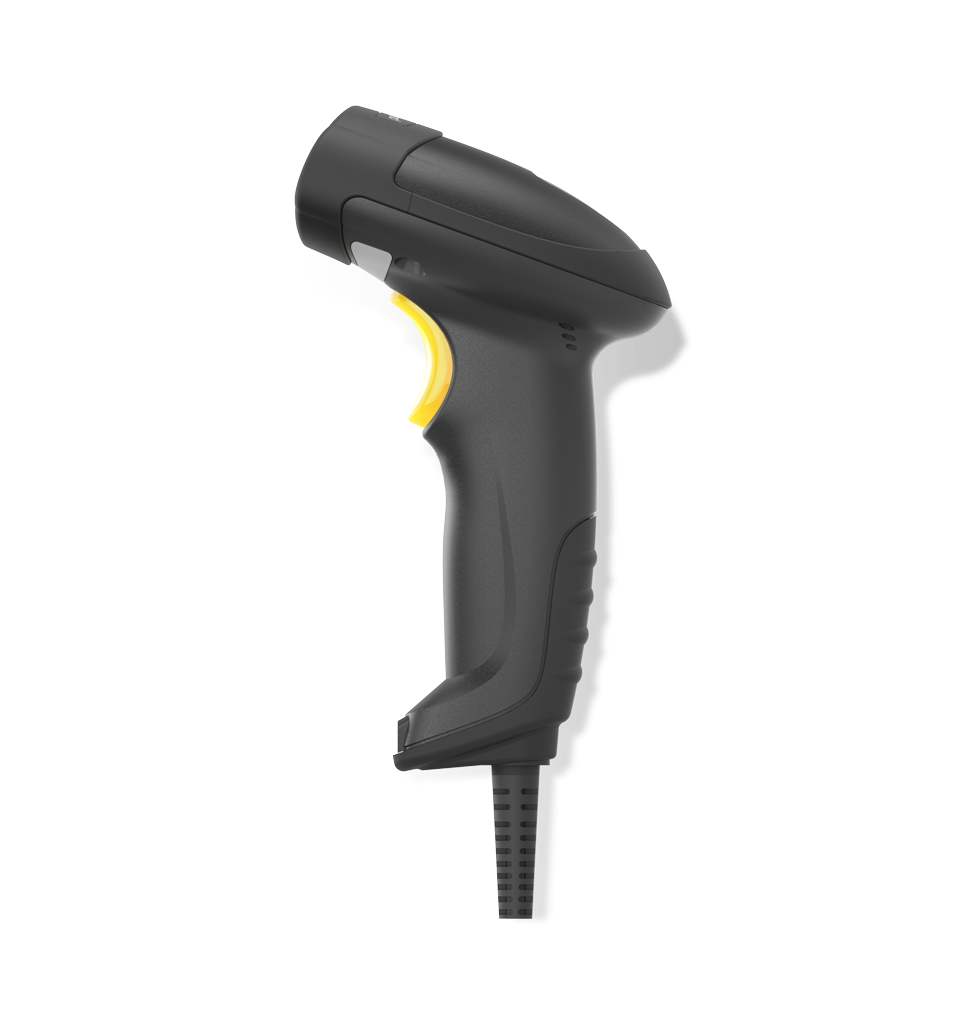

0000195_hr15_wahoo_corded_3

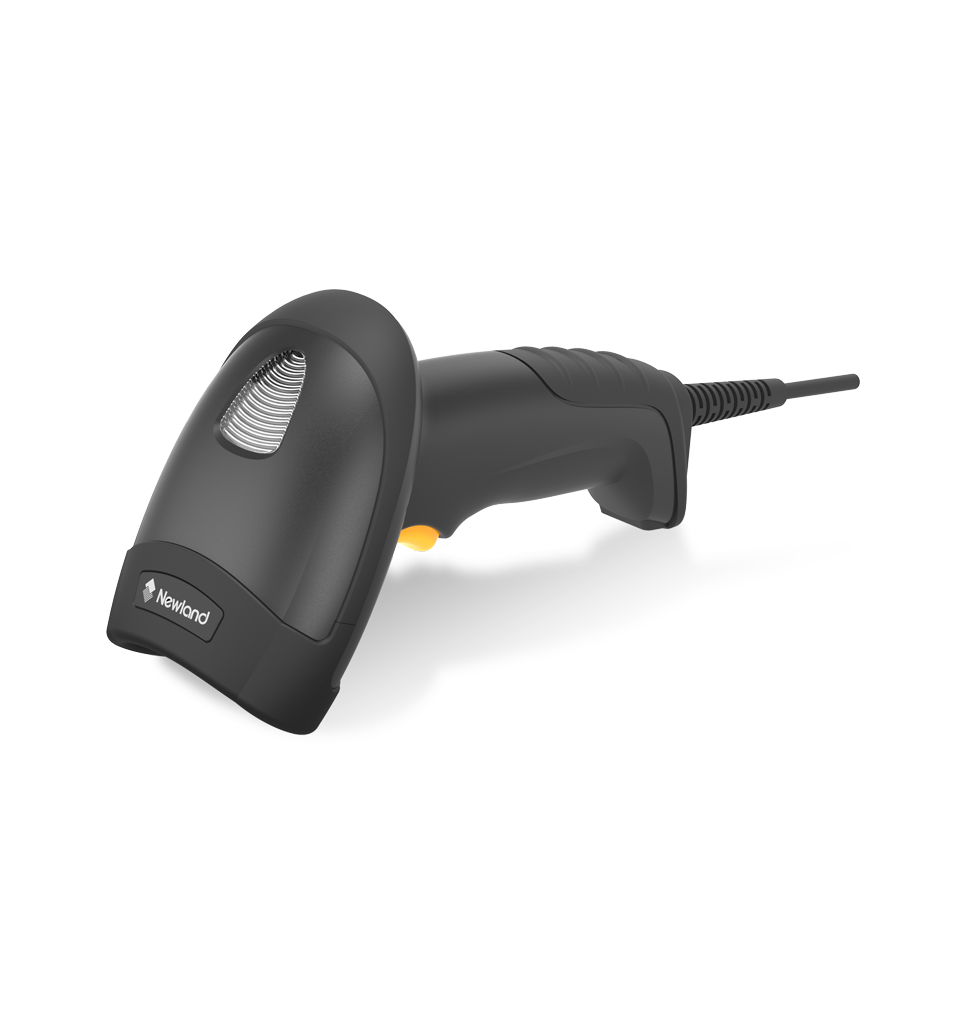

0000264_hr15_wahoo_corded_2

hr15-wahoo-corded_Datasheet

HR15 Wahoo Corded

Newland Barcode Scanner 76

1DAll major 1D symbologies, including Code 128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar,Interleaved 2 of 5, ISBN, Code 93, UCC/EAN-128, GS1 Databar,PDF417 (max. 255 bytes), MicroPDF417 (max. 255 bytes).
Depth of Field31.5 mm – 465.6 mm
Field of View Horizontal42°
IlluminationRed LED (620nm)
Image Sensor2500 CCD
Minimal Print Contrast25%
Scan Angle Pitch±55°
Scan Angle Roll30°
Scan Angle Skew±75°
Scan ModesManual Mode, Delayed Sense Mode, Trigger Mode, Auto Mode, Blink Mode, Sense Mode, Continuous Mode
Scan Rate300 scans per second
Current @ 5VDC Operating135 mA (typical), 185 mA (max)
Current @ 5VDC Standby75 mA
Dimensions113.5(W) x 73.3(D) x 159(H) mm
HousingPC, ABS
Input Voltage5 VDC ±5%
InterfacesRS-232, USB
NotificationsBeep, LED
Power Supply Input5 VDC (1.5 A)
Power Supply OutputAC100 to 240 V (50 to 60 Hz)
Weight152 g
Drop1.5 m
Electro Static Discharge (ESD)±8 kV (contact discharge), ±15 kV (air discharge)
Humidity5% to 95% (non-condensing)
IP RatingIP54
Operating Temperature-20°C to 50°C (-4°F to 122°F)
Storage Temperature-20°C to 60°C (-4°F to 140°F)
Certifications HardwareFCC Part15 Class B, CE EMC Class B, RoHS, IEC 62471, KC
Accessories OptionalUSB cable, USB-C cable, RS-232 cable, Multiplug adapter, Foldable smart stand, Wall mount clip
Accessories StandardUSB cable
