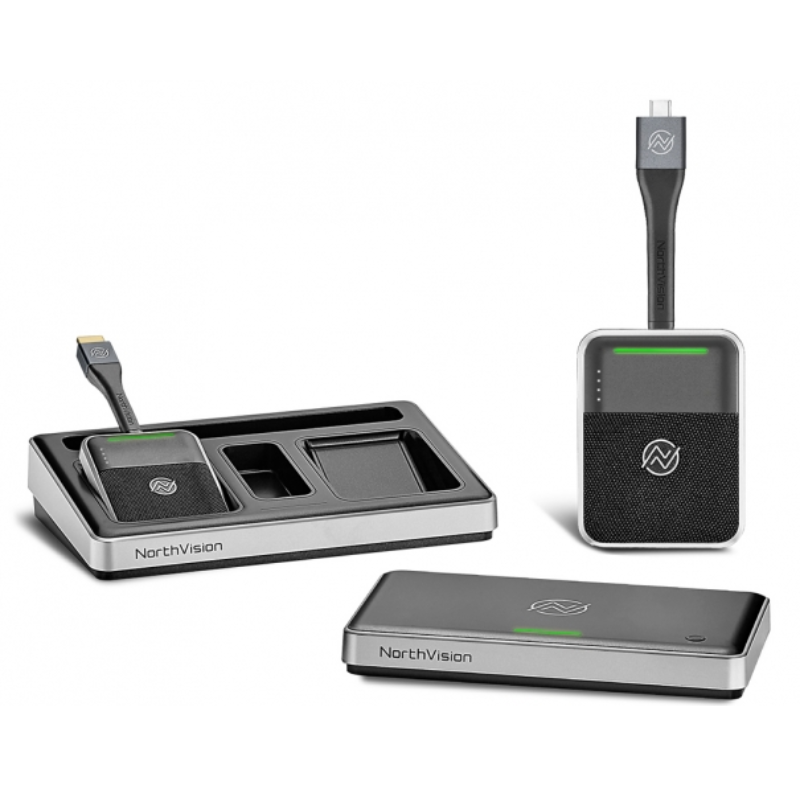

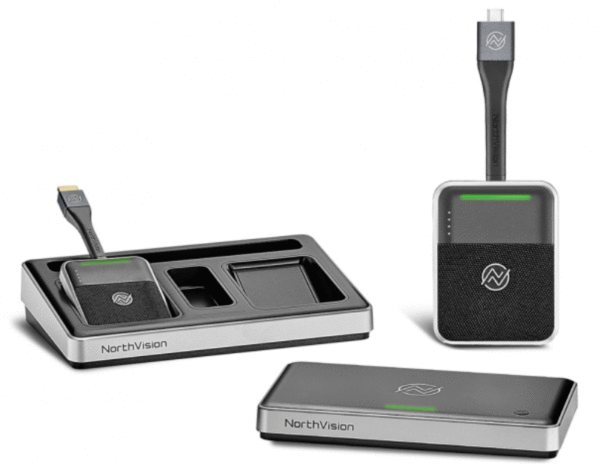

VISIONSHARE AC40

Meeting Room Type Corporate Meeting Room
Native Resolution 3840x2160@30Hz
Frequency Band 60GHz Wireless HD
Max. Data Rate Up to 28Gbit per second
WiFi Transmission Transmit Beamforming (TxBF)
Video Quality Uncompressed True Video Quality
Wireless Distance Up to 10 meters
Support OS Windows / MAC / Chrome / iOS / Android
Transmitter HDMI 2.0 x 2
HDCP HDCP 2.2
Charge Function Micro USB or Cordless Power Station
Battery Embedded type, 2500mAh; Support up to 3.5 hours usage
Transmitter Dimension 64mm (W) x 168 (D) x 20mm (H)
Receiver OS System Android System
Booting Time < 20 seconds
I/O Connectivity HDMI Output x 2, USB A x2 (Keyboard/Mouse/Touch), LANx1, Audio Outputx1, Power Jack x1
Embedded APP Mirroring360
Receiver Set-up Device ID, Clock Setting, Background, Power Setting, Connection, System
Receiver Dimension 160mm (W) x 100mm (D) x 25mm(H)
Power Consumption DC Adaptor 5V 4A
AC Input 100-240V, 50-60Hz
Package Contents MicroUSB Cable x 1, HDMI cable x1, MiniDP to HDMI adaptor x 1, QSG x 1,
Power Adaptor 5V4A x1 with EU or US adaptor x 1 (Depends on region)
Net/Gross Weight 3.5kg / 4.0kg
Carton Dimension (WxDxH) 335 x 265 x 155 (mm)
Master Weight / Qty 3.5kg / 4 units
Master Carton (WxDxH) 545 x 330 x 350 (mm)
