Razr LED Touch Screen A Series

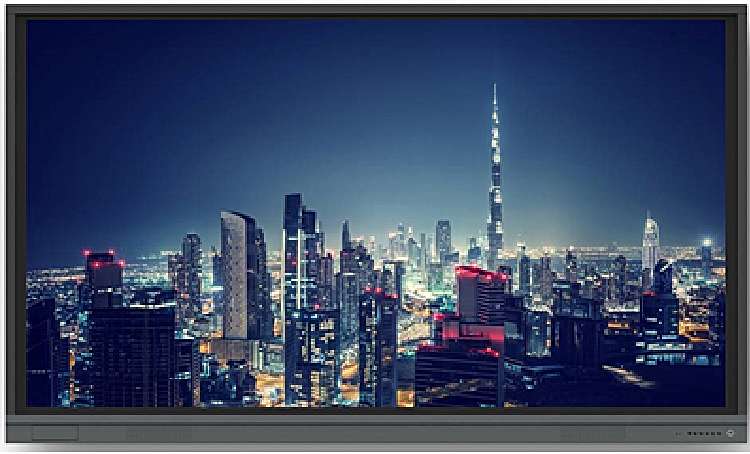

Spec : P65A

Spec : P75A

Spec : P86A

Manual

Model	P65A
Size	65"
Display Backlight	LED
Resolution	3840x2160 (4K)
Brightness	370cd/m2
Display ratio	16:9
Color temperature	10bit
Constrast ratio	4,000 : 1
Viewing Angle	178∘
Life time	≧50000h
Touch technology	Infrared Touch
Touch Surface Material-Hardness	Tempered glass
Touch Surface Technology	Anti-Glare glass
Touch points	"10 Points under Windows 10 Points under Android"
Touch Screen Writing Tools	Nano Pen (>6mm width) included or Finger
Touch Response time	7mm
USB-TOUCH	USB(Touch) x 4
Speaker Max.Power Output	15Wx2
VESA Mount installation position	600x400mm
Android CPU	4 core 1.4GHz
Android GPU	6 core 600MHz
Android RAM	2GB
Android ROM	8GB
Rear input	"Rear: HDMI 2.0(4K@60Hz*2) x 2, DP1.2(4K@60Hz) x 1, VGA(1920x1080@60Hz)x1 Front : HDMI 1.4(4K@30Hz)"
Output	"HDMI out (Support 4k@60Hz, 1920x1080@60Hz)x 1 , Line Out x1, SPDIF out x1"
Other Port	RS232 x 1, OPS x1
USB port	USB2.0(public) x 3,USB3.0(public) x 1, USB 2.0 Embedded x 1
Ethernet port	RJ45 x 2
Product size/mm	1540 x 980 x 95mm
Net Weight	57KG
Power	"Maximum <220W Standby Mode ≤0.5W"

Model	P75A
Size	75"
Display Backlight	LED
Resolution	3840x2160 (4K)
Brightness	370cd/m2
Display ratio	16:9
Color temperature	10bit
Constrast ratio	4,000 : 1
Viewing Angle	178∘
Life time	≧50000h
Touch technology	Infrared Touch
Touch Surface Material-Hardness	Tempered glass
Touch Surface Technology	Anti-Glare glass
Touch points	"10 Points under Windows 10 Points under Android"
Touch Screen Writing Tools	Nano Pen (>6mm width) included or Finger
Touch Response time	8mm
USB-TOUCH	USB(Touch) x 4
Speaker Max.Power Output	15Wx2
VESA Mount installation position	800x400mm
Android CPU	4 core 1.4GHz
Android GPU	6 core 600MHz
Android RAM	2GB
Android ROM	8GB
Rear input	"Rear: HDMI 2.0(4K@60Hz*2) x 2, DP1.2(4K@60Hz) x 1, VGA(1920x1080@60Hz)x1 Front : HDMI 1.4(4K@30Hz)"
Output	"HDMI out (Support 4k@60Hz, 1920x1080@60Hz)x 1 , Line Out x1, SPDIF out x1"
Other Port	RS232 x 1, OPS x1
USB port	USB2.0(public) x 3,USB3.0(public) x 1, USB 2.0 Embedded x 1
Ethernet port	RJ45 x 2
Product size/mm	1770 x 1070x10
Net Weight	N/A
Power	"Maximum <400W Standby Mode ≤0.5W"

Model	P86A
Size	86"
Display Backlight	LED
Resolution	3840x2160 (4K)
Panal	IPS
Brightness	370cd/m2
Display ratio	16:9
Color temperature	NO
Display Color	10bit 1.07billoncolour
Constrast ratio	4,000 : 1
Response Time (Typical)	8ms
Viewing Angle	178∘
Life time	minimum 50,000 hours
Display Orientation	landscaepe
Optical Bonding	NO
Touch technology	Infrared Touch
Touch Surface Material-Hardness	Tempered glass 7H
Touch Surface Technology	Anti-Glare glass
Touch points	20 Points under Windows ,10 Points under Android
Touch Screen Writing Tools	find pen 3mm or Finger
Cursor Speed	100 point/s
Touch Response time	10mm
Positioning Accuracy	1 mm
USB-TOUCH	USB(Touch) x 5
Speaker Max.Power Output	15Wx2
Installation Method (optional)	wall-mounted / floor stand
VESA Mount installation position	800x400mm
Android Version	8
Android CPU	Cortex A73+A53 Quad core 1.5GHz
Android GPU	Mali-G51
Android RAM	3GB
Android ROM	16GB
Camera	NO
Mic	NO
Front input	HDMI x1, USB Touch x1, USB 2.0 x2, MIC x1
Rear input	HDMI 2.0 x2, DP x1, VGA x1, Audio in x1,USB Touch x4, USB 2.0 x2, USB 3.0 x1, RJ45 x1,OPS Slots x1, RS232 x1
Output	HDMI Out x1, Line Out x1, SPDIF out x1, RJ45 x1
Other Port
USB port
Ethernet port
Product size/mm	2019 x 1209 x 116mm
Net Weight	73KG
Power	"Maximum <450W Standby Mode ≤0.5W"
