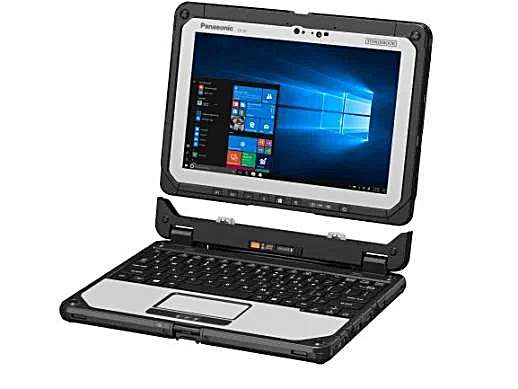

Panasonic Commercial Notebook CF-20


Platform / CPU Intel® Core™ m5-6Y57 vPro™ processor 1.1 GHz up to 2.8 GHz with Intel® Turbo Boost
Technology, 4MB Intel® Smart Cache
Operating System Windows 7 Pro 64 bit
Memory & Storage 8GB, LPDDR3L SDRAM Hard disk memory: 512GB SSD
Display 10.1" sunlight-viewable WUXGA Active Matrix (TFT), 1920 x 1200 dots,
2-in-1 Detachable
Camera Front: 2MP, 1280 x 720 dots, 30fps Rear: 8MP with autofocus and LED light
Expansion Slots Tablet: microSDXC card x1 Keyboard Base: micro SDXC card x1
Connectivity Bluetooth®: Version 4.1 + Classic mode/Low energy mode, Class 1
Intel® Dual band Wireless-AC 8265 (a/b/g/n/ac)
LAN: IEEE 802.3 10 Base-T/IEEE 802.3u 100 Base-TX/IEEE 802.3ab 1000 Base-TX
Interfaces USB 3.0 x3 (x1 Tablet, x2 Keyboard Base)
LAN port (RJ-45) x2 (x1 Tablet, x1 Keyboard Base)
HDMI x2 (x1 Tablet, x1 Keyboard Base)
Serial x1 (Keyboard Base), x1 optional (Tablet Configuration Port)
Headset x1 (Tablet)
USB 2.0 x1 (Keyboard Base)
VGA port x1 (Keyboard Base)
Dual External Antenna Connector x1 (Keyboard Base)
Port Replicator Connector x1
Power Battery: Li-Ion 11.4V, 2600mAh
Tablet only: Approx. 11hrs Tablet + Keyboard Base: Approx. 10hrs
Dimensions Tablet only: 272mm x 196mm x 16.4mm (10.7" x 7.7" x 0.64“)
Tablet + Keyboard Base: 272 mm x 233 mm x 33.5 mm (10.7" x 9.17" x 1.31“)
Weight Tablet: Approx. 950g (2.09lbs
Tablet + Keyboard Base: Approx. 1.76kg (3.88lbs)
Ruggedisation Dust & Water resistance test: IP65
Gravity drop resistance test: MIL STD 810G, 120cm
